| Brand Name: | ZhaoGuang |
| Model Number: | ZG-HC200-2000 |
| MOQ: | 1 set |
| Payment Terms: | T/T |
| Supply Ability: | 300 |

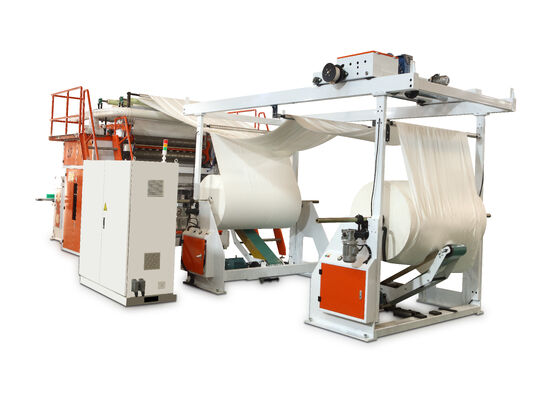

Facial Tissue Folding Machine with Auto transfer unit including steel to steel embossing unit and glue lamination unit

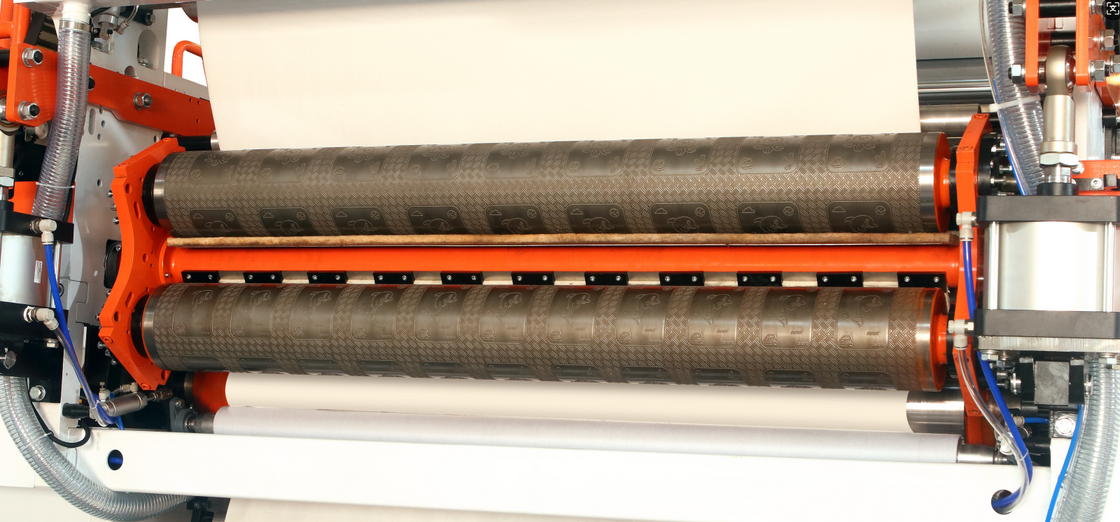

Patented spiral blade slitting structure (Patent No.ZL201010187825.5)with long service life and stable cutting performance,achieving complete cut without any trailing paper.
Linear guide rail pneumatic lifting system with fine adjustment for upper blade frame,facilitating easy paperfeeding and operational adjustments.

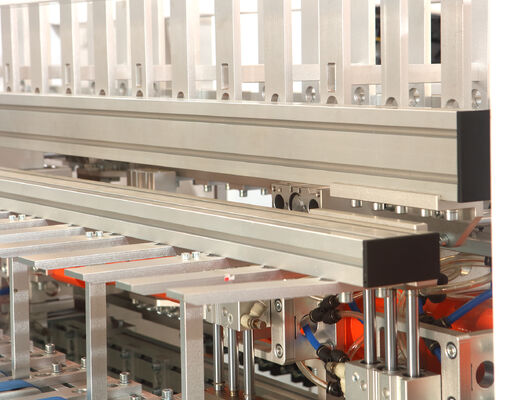

Patented dual-solenoid valve vacuum suction folding mechanism(Patent No.ZL201220193213.7),allowing independent adjustment of Valves I,Il and III.
Intelligent automatic transfer system with servo control,featuring stable output of bottom-pull tissue logs /interfold paper towel logs.
| Machine Model | HMJ- XL |
|---|---|
| Parent Roll Width | 1500/2000/2950 mm |
| Parent Roll diameter | ≤1500mm |
| Parent Roll loading | Pnuematic cylinder or Crane arms lifting |
| Folding type | V fold |
| slitting Sheet size | 175 / 180/190/200/210mm |
| Embossing (options) independent drive | 4-sides position embossing |
| Edge-embossing by independent motor drive | |
| Glue lamination | |
| Glue free lamination | |
| steel to rubber/felted/woolen /steel roller | |
| Transfer system | Transfer structure:inside transfer |
| Counting: set on HMI | |
| Turn-over device | |
| Flatting device | |
| Designed speed | 130 meters /min |
| Prodution speed | 100 meters /min |
