High Precision Tissue Paper Cutting Machine Automatic Toilet Roll Cutting Machine Customized

High Precision Tissue Paper Cutting Machine Automatic Toilet Roll Cutting Machine Customized

Brand Name: Zhaoguang
Model Number: ZG-QZ360
MOQ: 1
Price: Negotiate
Payment Terms: TT Payment
Supply Ability: 300
Detail Information
Certification:
CE
Name:
Tissue Paper Cutting Machine
Motor Power:
7.5 KW
Power Supply:
380V/50Hz
Cutting Size:
110mm Height
Cutting Length:
Customized , Adjustable
Machine Type:
Automatic Toilet Tissue Band Saw Cutting Machine
Machine Color:
White Or Blue
Conveyor Connected:
Including
Cutting Accuracy:
±0.5 Mm
Cutting Speed:
130 Cuts/min
Feeding Length:
2000-3000mm
Packaging Details:
Wooden Pallet
Supply Ability:
300
Highlight:

High Precision Tissue Paper Cutting Machine

,

Automatic Toilet Roll Cutting Machine

,

Toilet Roll Cutting Machine Customized

Product Description
Cutting Accuracy ±0.5 Mm Tissue Paper Cutting Machine Automatic Version Providing High Precision and Cutting Performance
Product Description:

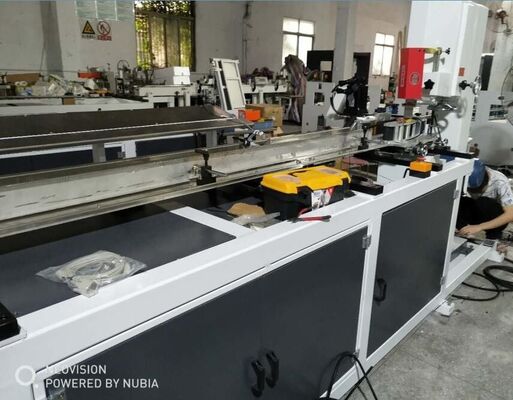

The Toilet Tissue Band Saw Cutting Machine is an advanced and highly efficient solution designed specifically for the precise cutting of tissue paper logs.

In addition to its precision, the machine is designed with user convenience and operational efficiency in mind. The conveyor system is fully integrated, providing a seamless connection that facilitates the smooth feeding and transportation of tissue paper rewinding machine through the cutting machine. This conveyor connection not only speeds up the production process but also reduces manual handling, thereby enhancing safety and reducing labor costs.

Features:
  • Product Name: Automatic Toilet Tissue Band Saw Cutting Machine
  • Machine Type: Fully Automatic
  • Cutting Height: Depend on the finished product diameter (maximum is 150mm)
  • Log Saw Cutting Speed: 130 Cuts/min
  • Conveyor Connected: Included
  • Cutting Size: To Be Specified

Technical Parameters:
Control System PLC Control
Blade Type  Band Saw Blades
Motor Power 7.5 KW
Cutting Size Maximum height is 150mm
Band Saw Cutting Speed 1300Cuts/min
Power Supply 380V/50Hz
Warranty Time 12 Months
Cutting Accuracy ±0.5 mm
Conveyor Connected Including
Support and Services:



Installation and Setup: Professional installation is recommended to guarantee proper alignment and safety compliance. Ensure the machine is placed on a stable surface and connected to the appropriate power source as specified in the user manual.

Operation Support: Before operating the machine, carefully read the user manual and safety instructions. Use the machine within the specified parameters to avoid damage or accidents. Regularly check the saw blade condition and replace it when worn out to maintain cutting precision.

Maintenance Services: Routine maintenance includes cleaning sawdust and debris from the machine, lubricating moving parts, and inspecting electrical connections. Schedule periodic maintenance checks with authorized service providers to keep your machine running smoothly.

Spare Parts and Repairs:  Use only genuine spare parts for replacements to ensure compatibility and safety. Our authorized service centers provide repair services and genuine parts to restore your machine to optimal condition.
