Vacuum Transfer Napkin Folder Machine ZGNF-600V Automatic Paper Napkin Folding Machine Touch Screen

Vacuum Transfer Napkin Folder Machine ZGNF-600V Automatic Paper Napkin Folding Machine Touch Screen

Vacuum Transfer Napkin Folder Machine ZGNF-600V Automatic Paper Napkin Folding Machine Touch Screen

Brand Name: ZhaoGuang
Model Number: ZGNF-600V
MOQ: 1 Set
Price: USD 9000-15000 / Set
Payment Terms: T/T,L/C
Supply Ability: 300 Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Foshan, Guangdong, China
Certification:
CE, ISO 9001:2015
Vacuum Transfer System:
Yes, Suction Conveyor
Counting:
Touch Screen Setting 6/8/10/12 Pieces
Speed:
700-900 Pieces Per Minute
Voltage:
380V 50HZ
Main Power:
3KW
Vacuum Pump Power:
5.5KW
Air Pressure:
0.6-0.8MPa
Max Jumbo Roll Diameter:
1200mm
Parameter Setting:
Touch Screen
Warranty:
1 Year
Packaging Details:
Export wooden case with plastic film protection
Supply Ability:
300 Sets per Month
Highlight:

Vacuum Transfer Napkin Folder Machine

,

Automatic Napkin Machine Touch Screen

,

Vacuum Suction Paper Napkin Folder

Product Description

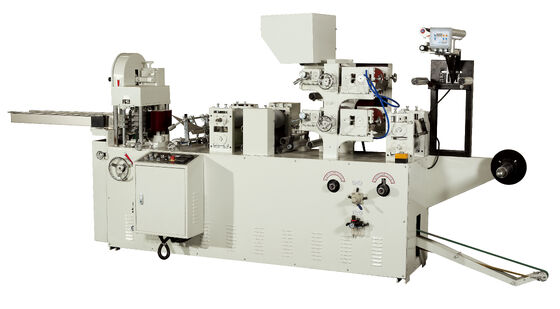

Vacuum Transfer Napkin Folder Machine ZGNF-600V

The ZGNF-600V vacuum transfer napkin folder machine uses a vacuum suction conveyor to carry folded napkins smoothly from the folding section to the stacking and counting section, preventing misalignment even at high speed. With touch screen parameter setting, operators can switch bundle counts and machine speed within seconds.

Key Features

  • Vacuum suction transfer keeps folded napkins aligned and wrinkle-free between sections
  • Touch screen control panel for speed, count and stack setting with one-touch recall of saved recipes
  • Automatic counting packs 6, 8, 10 or 12 pieces per stack as configured on the touch screen
  • Automatic stop and alarm when paper web breaks or the machine is blocked, protecting rollers and folders
  • Stable 700-900 pieces per minute output suitable for medium and large napkin production lines
  • Low noise design with enclosed transmission and safety guards

Technical Specifications

ModelZGNF-600V
Max Jumbo Roll Width400mm
Max Jumbo Roll Diameter1200mm
Folded SizeUp to 200x200mm
Folding Style1/4 Fold
Transfer SystemVacuum Suction Conveyor
Working Speed700-900 Pieces per Minute
CountingTouch Screen Setting 6/8/10/12 Pieces
Main Power3KW, 380V, 50HZ
Vacuum Pump5.5KW
Air Pressure0.6-0.8MPa
Machine SizeAbout 2500x900x1600mm

Applications

  • Automatic dinner napkin folding and stacking lines
  • Restaurant napkin production with high speed requirements
  • Napkin lines connected to wrapping and packing machines

Contact us today for the latest factory price and delivery schedule.
