| Brand Name: | ZhaoGuang |
| Model Number: | ZGFJ2600 |
| MOQ: | 1 set |
| Payment Terms: | T/T |
| Supply Ability: | 300 |

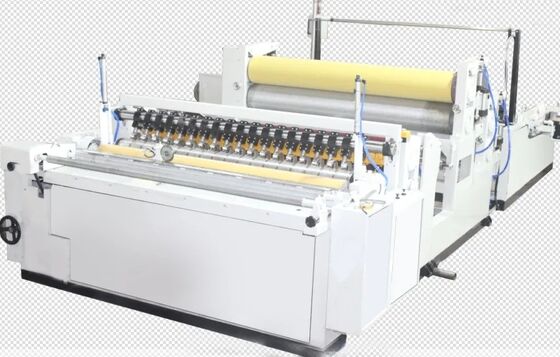

Semi Automatic JRT/Maxi Roll/ HRT Toilet Roll Rewinding Machine With Slitting Knife
High speed toilet paper rewinding machine
| MODLE | 1575 | 1760 | 2200 | 2500 | 2800 | 2900 | 3000 |
|---|---|---|---|---|---|---|---|
| Max.Jumbo roll width(mm) | 1750 | 2000 | 2150 | 2400 | 2750 | 2850 | 2950 |
| Finished product diameter(mm) | Ф60-150 | ||||||
| Finished product core inner diameter(mm) | Ф32-50 | ||||||
| Jumbo roll diameter(mm) | ≤Ф1200(other size should be ordered) | ||||||
| Jumbo roll core inner diameter(mm) | Ф76.2(other size should be ordered) | ||||||
| Perforating size(mm) | 110mm(other size should be ordered,4PCS spiral perforating blade) | ||||||
| Machine speed | 220m/min | ||||||
| Parameter setting | touch screen | ||||||
| PLC control | PLC | ||||||
| backstand | 1-4sets(should be ordered) | ||||||
| Air pressure | 0.8Mpa(user supply) | ||||||
| Power | 13.5-35Kw,380V,50Hz(base on the model) | ||||||
| Option | |||||||
| Embossing unit | Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered) | ||||||
| backstand | 1-4 sets(should be ordered) | ||||||
| Transmission | Separating motor driving/timming belt transmission/chain and chain wheel transmission | ||||||
| Core or coreless unit | Should be ordered | ||||||
| Edge embossing unit | Air bag type(should be ordered) | ||||||
| Calendering unit | Steel to steel/steel to rubber(should be ordered) | ||||||
